Universal Spa Relay Panel


Professional-grade relay logic panel that safely interfaces auxiliary spa equipment with the chemical controller and provides full interlocks with the main circulation pump.

Key Features

  • • Dedicated contactors for the spa circulation pump and up to two jet pumps
  • • High-capacity relays protect the chemical controller’s sensitive electronics

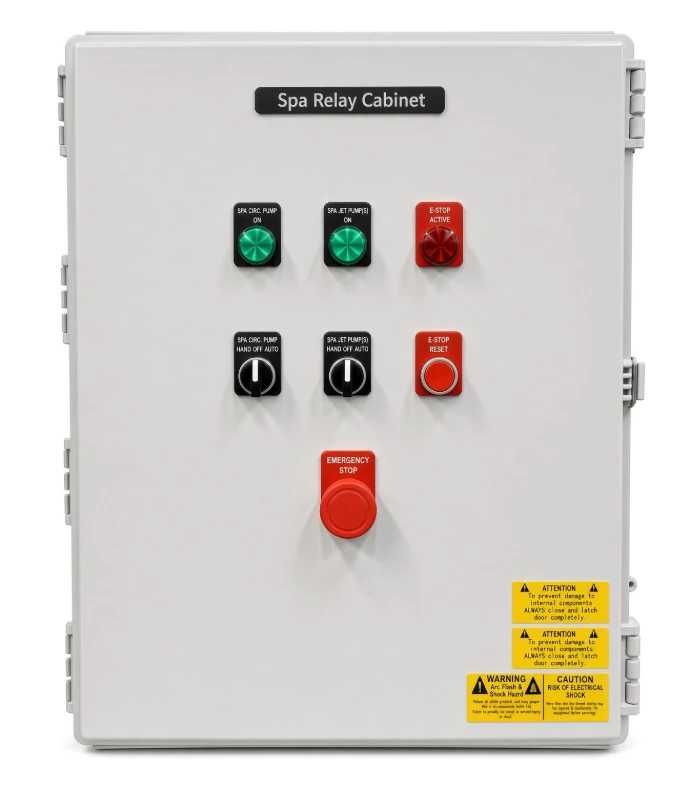

  • • Built-in spa Emergency Stop circuit with door-mounted E-Stop button and illuminated “E-Stop Activated” indicator
  • • Adjustable 15-minute jet timer mounted inside the UL / NEMA 4X enclosure to keep it out of the corrosive equipment-room atmosphere
  • • Ready for the remote-mounted Spa E-Stop & Jet Timer Bollard (sold separately)

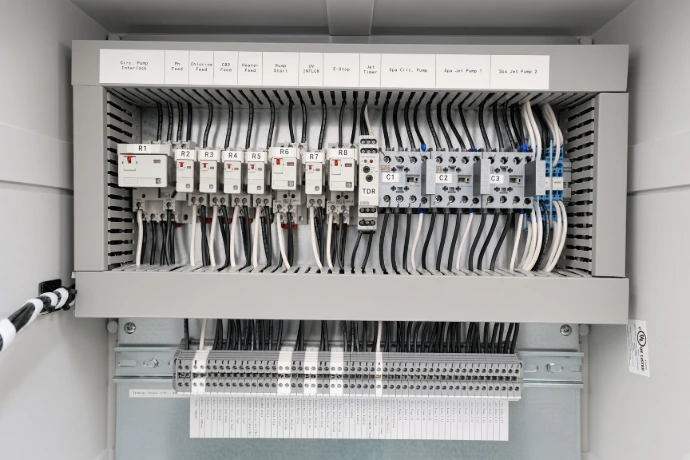

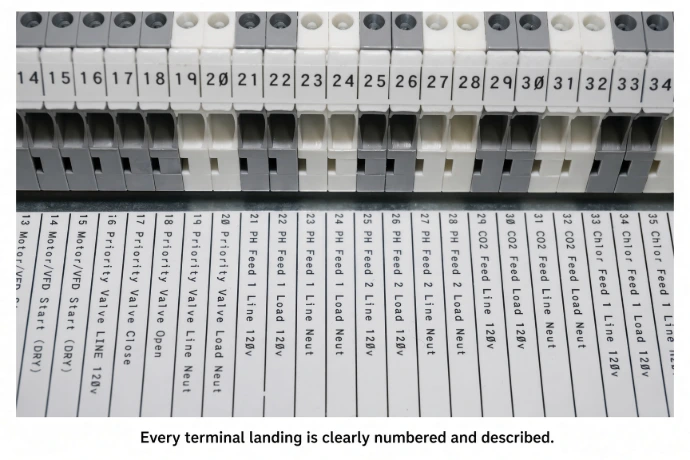

  • • Clean, labeled terminals and color-coded wiring for fast installation and service
  • • Easy-to-follow installation manual and wiring diagram included. Printed copies plus a QR code for digital download.

A complete code-compliant solution for equipment protection, operator safety, and reliable performance in commercial spa environments.

UL 508A listed control panel. UL / NEMA 4X rated.
