3PH Motor Interface for Pool Automation Systems

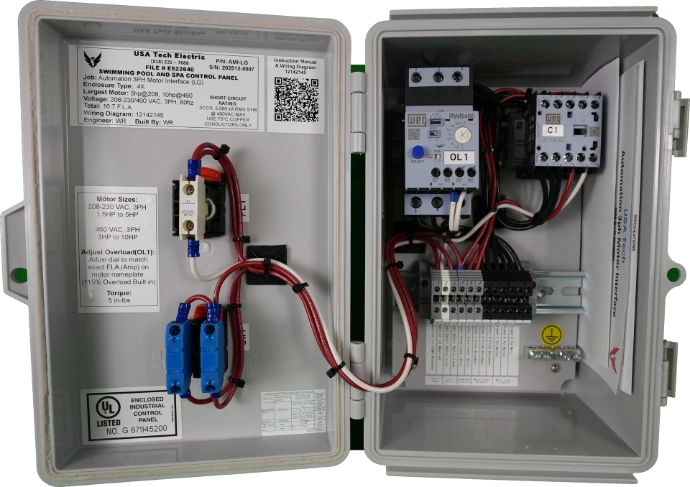

The AIM allows a fixed-speed 3-phase motor to be controlled automatically by standard residential pool controllers (e.g., Jandy, Pentair) through programmable relays. All that is needed is 120-volt control power and two wires connected to one auxiliary relay.

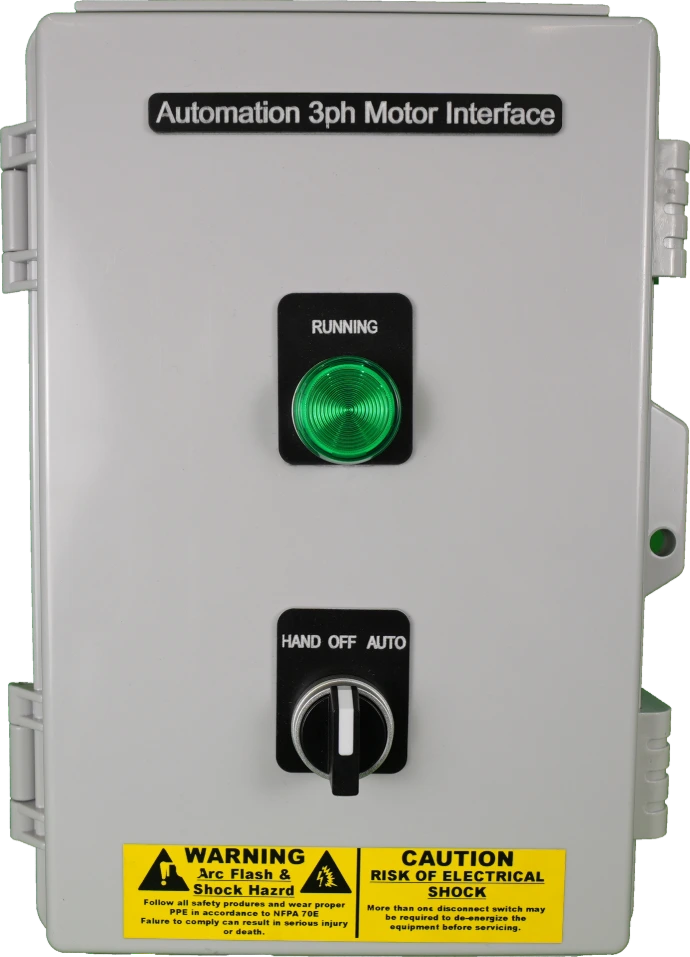

Includes a motor-running green pilot light, Hand/Off/Auto selector switch, and motor-running interlock contacts.

• Fully UL 508A listed control panel
• UL / NEMA 4X rated for pool equipment rooms
• Built-in Hand/Off/Auto selector switch
• Manual or automatic control through a standard pool controller relay
• Adjustable electronic overload relay for overload and locked-rotor protection
• Motor-running green pilot light
• Motor-running interlock dry contacts (5 A, up to 250 VAC or 30 VDC)
• Made in USA

SPECIFICATIONS

Voltage:
• Control: 120 VAC, 1PH

Horsepower — Small (Model SM):
• 208/230 VAC, 3PH: 1/2 HP to 1.5 HP
• 460 VAC, 3PH: 1 HP to 3 HP

Horsepower — Large (Model LG):
• 208/230 VAC, 3PH: 1.5 HP to 5 HP

• 460 VAC, 3PH: 3 HP to 10 HP
