Spa and Slide Bollards and E-Stop Stations

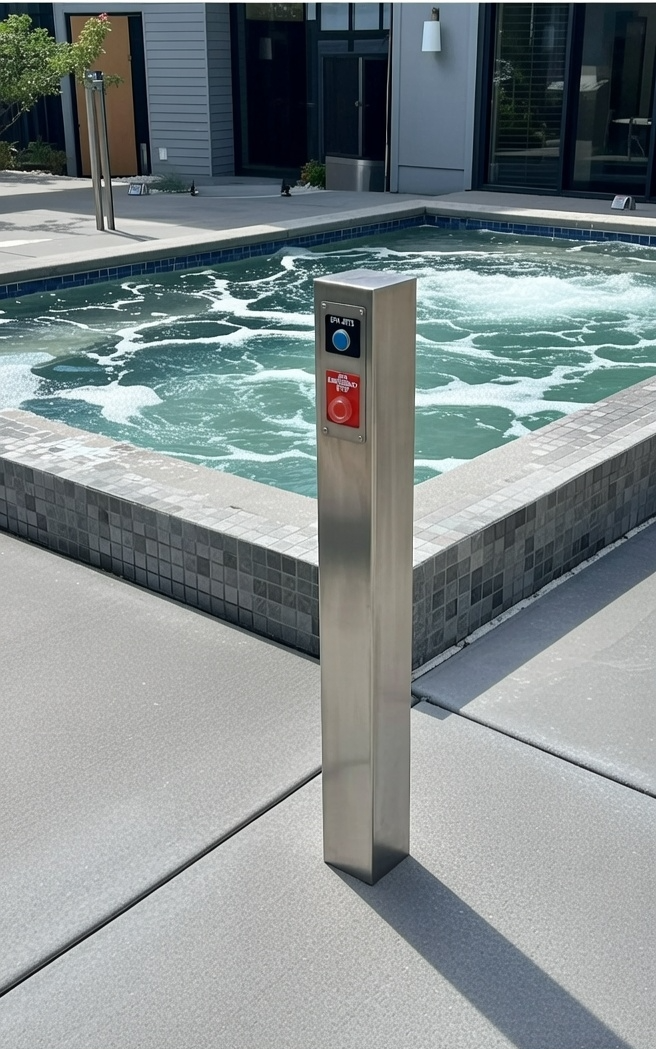

Model Number: SB1
Spa E-Stop & Jet Timer BOLLARD (316 Stainless Steel)

Elegant design, superior durability, and code-compliant safety in one maintenance-free solution.

Can be ordered in 1 or 2 button configuration.

  • Large, clearly marked Emergency Stop button instantly shuts down all spa equipment via direct integration with the USA Tech Spa Relay Panel or
  • Jet Timer push-button activates factory-set 15-minute timer module housed inside the UL-listed/NEMA
  • 4X relay panel in the equipment room — protected from moisture, chlorine, and physical damage for dramatically longer service life compared to traditional spring-wound timers mounted at the spa.
  • Connects to the USA Tech Universal Spa Relay Panel or USA Tech Spa E-Stop/Jet Timer Interface Panel.
  • Mounting: Wedge anchors on existing concrete, or J-hooks poured in place for new concrete.

 SB1 - Bollard

ESB-SL

ESB-SPA

 SWM-1

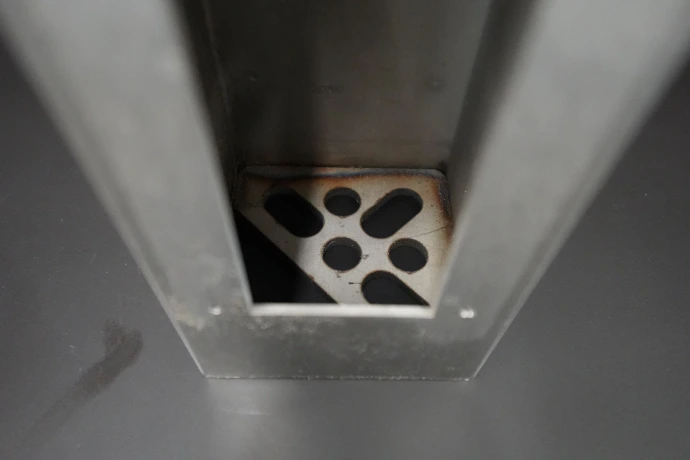

 SB1 - Mounting Bottom
 Mounting Plate

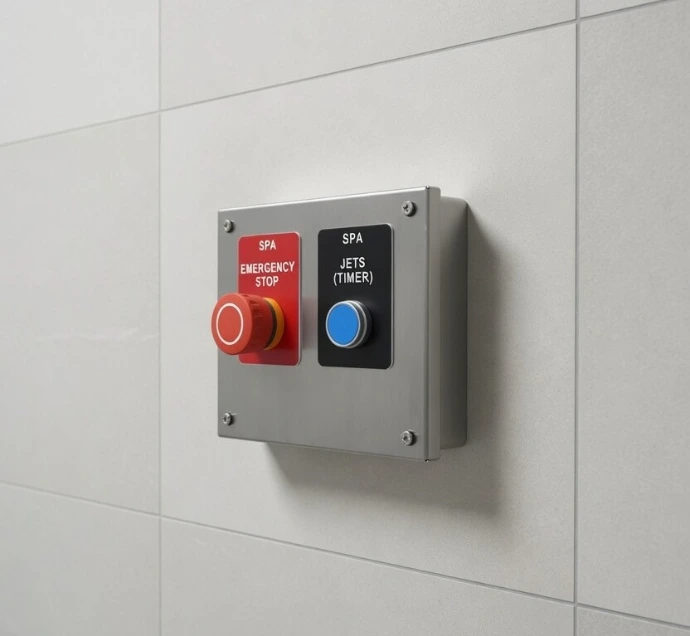

Model Number: SWM-1
Spa E-Stop & Jet Timer - WALL MOUNT (316 Stainless Steel)

  • Large, clearly marked Emergency Stop button instantly shuts down all spa equipment via direct integration with the USA Tech Spa Relay Panel.
  • Jet Timer push-button activates factory-set 15-minute timer module housed inside the UL-listed/NEMA 4X relay panel in the equipment room — protected from moisture, chlorine, and physical damage for dramatically longer service life compared to traditional spring-wound timers mounted at the spa.
  • Mounting: This box is designed for surface mounting over a wall with an embedded single-gang bell box. It can replace a single-gang timer switch or wall plate and connects to the USA Tech Universal Spa Relay Panel or USA Tech Spa E-Stop/Jet Timer Interface Panel.

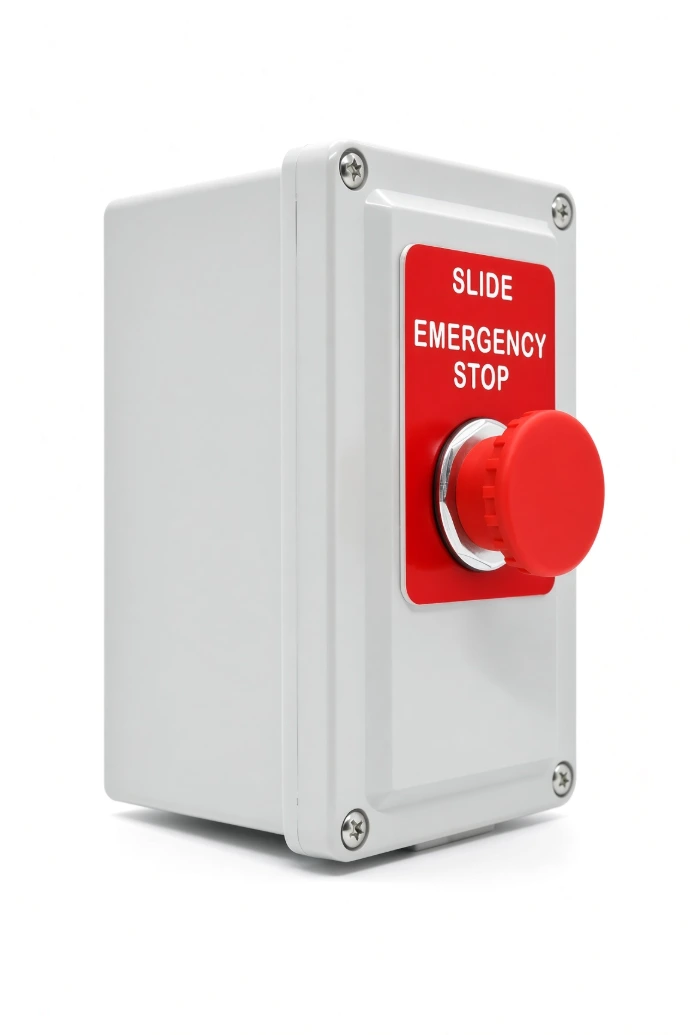

Model Number: ESB-SL & ESB-SPA
Emergency Stop Button With Enclosure (Fiberglass)

Heavy-duty fiberglass NEMA 4X/UL Type 4X enclosure for corrosive pool/spa environments. 44mm red mushroom-head push button with NC contact. Quick and easy installation.
